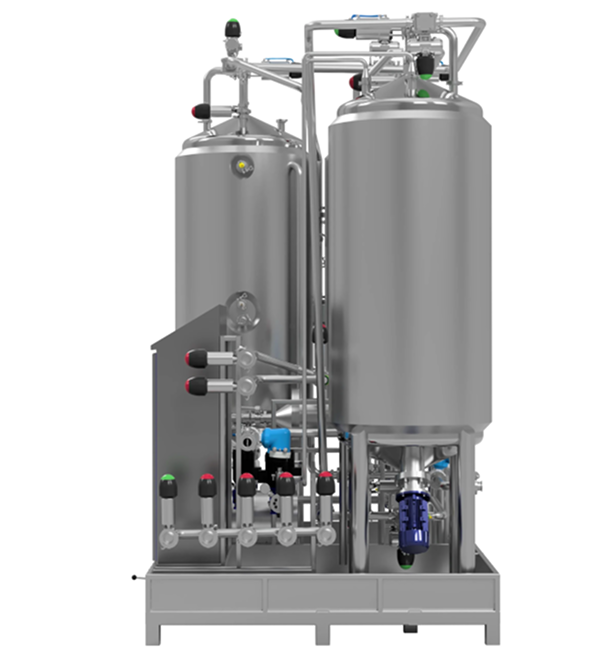

Front

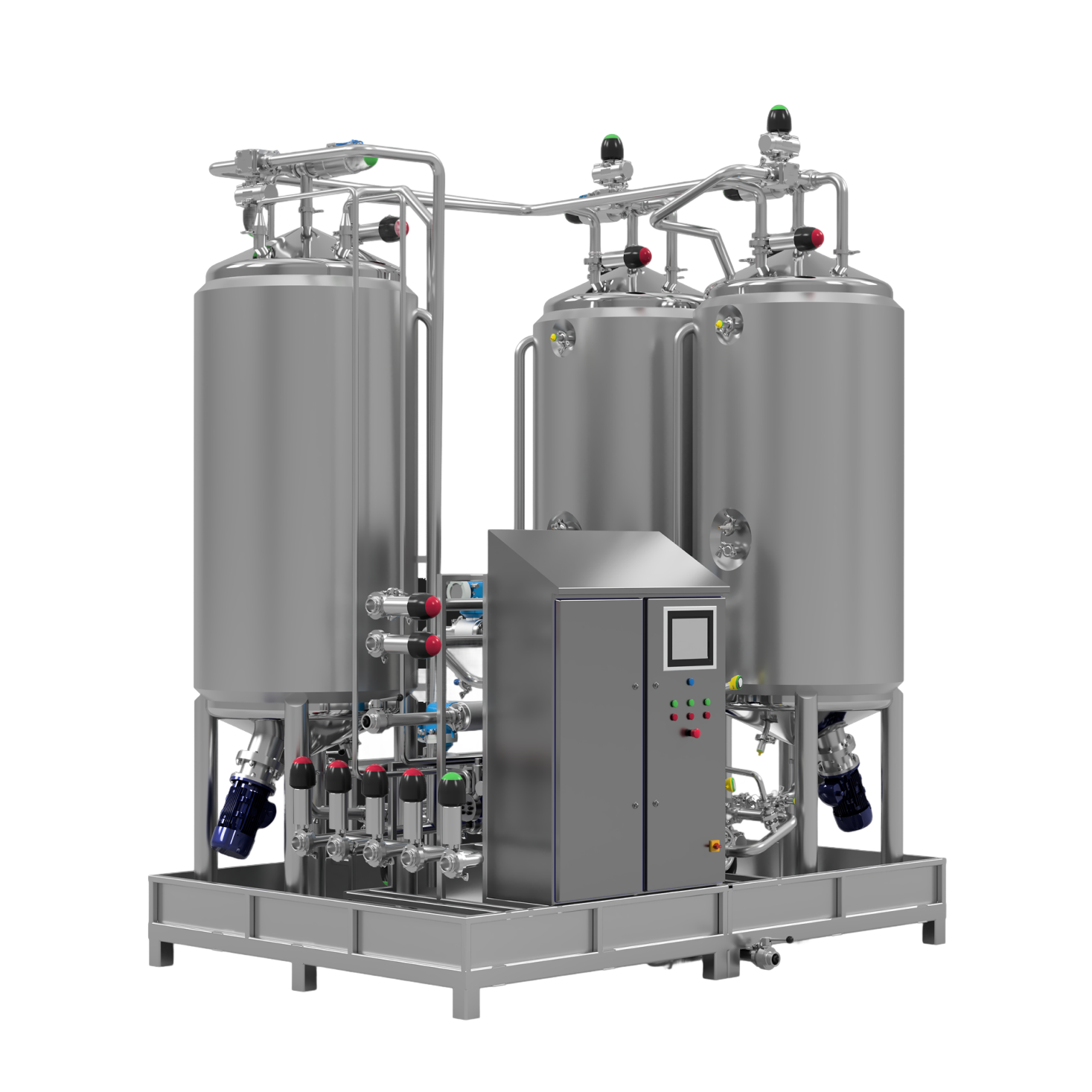

Back

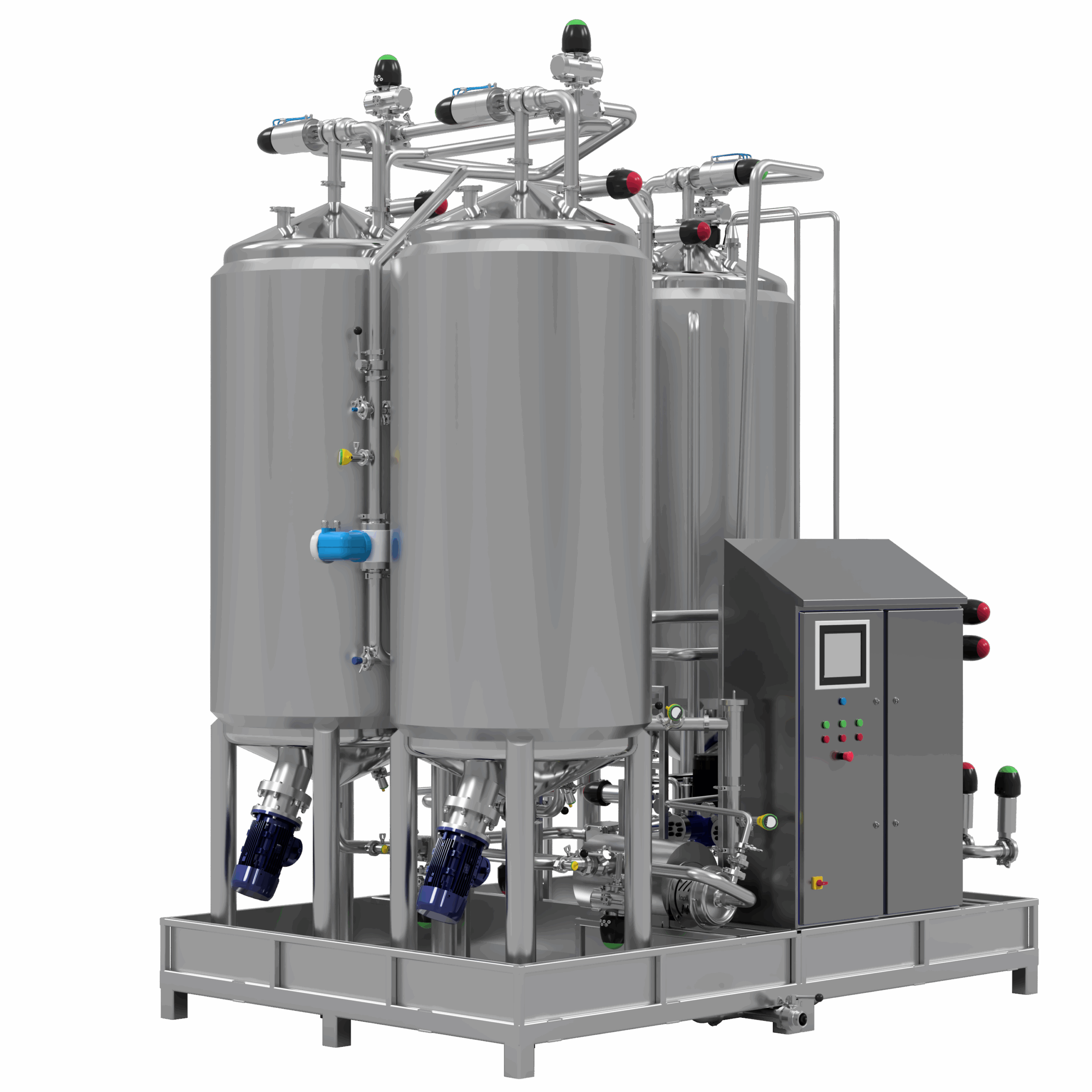

Side
Our Multi-Tank CIP System offers an advanced, high-capacity cleaning solution designed for operations requiring frequent sanitation, efficiency, and sustainability. Designed to enable recovery and reuse of cleaning agents, these systems are ideal for large-scale or multi-stream processes where hygiene, cost-efficiency, and resource optimisation are critical. Configurable as 2, 3, 4 (or more) tank systems, they provide unmatched flexibility for custom setups.
Supports rinse, detergent, recovery, and acid stages for complex or multi-phase cleaning
No limitations on tank size, pipe diameter, or system layout, tailored to your plant
Capable of cleaning two or more separate lines or areas simultaneously using multiple pumps
High flow rates and large tanks allow for continuous cleaning of extended process lines
Whether acid reuse, aggressive chemical cycles, or specialised cleaning, configuration is fully tailored
Full PLC control with remote troubleshooting and system updates via end-to-end encrypted connection
Built-in recovery loops reduce water and chemical use
Designed to meet FDA, HACCP, and cGMP standards
CIP break tanks and backflow protection to prevent contamination
Pre-Rinse | with recovered water
Temp | Ambient °C
Duration | 5 – 10 min
Alkali Clean | 2% Caustic Solution
Temp | 70–80°C
Duration | 10 – 20 min
Inter-Rinse | with process water
Temp | Ambient °C
Duration | 5 – 20 min
Acid Clean | 1% Phosphoric Acid
Temp | 50–70°C
Duration | 2 – 10 min
Inter-Rinse | with process water
Temp | Ambient °C
Duration | 5 – 20 min
Final Rinse | Quality (Purified) Water
Temp | Ambient °C
Duration | 5 – 20 mins
Air Purge | Sterile Air
Temp | 20–30°C
Duration | 3 – 15 mins
Tank Configuration:
2-4 tank systems for rinse, detergent, and recovery processes
Flow Rate:
Customisable up to 24m³/hr
Temperature Range:
Up to 90°C for alkali cleaning
Cleaning Velocity:
Turbulent flow achieved at 1.5 m/s or higher
Material:
Food-grade Stainless Steel (304/316)
Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore
The system includes dedicated tanks for rinse, detergent, recovery, and optional acid reuse, Tapflo high-efficiency centrifugal pumps, Cipriani Harrison butterfly valves, flow rate sensors, temperature sensors (alkali up to 90°C), conductivity and chemical concentration monitoring, and tank level sensors. It also includes PLC controls, a washdown-rated 316 stainless steel construction, and Ethernet communication for data logging and updates.
More about this on our CIP Blog
The system is configurable as a setup with 2 or more tanks. A 2-tank system includes rinse and detergent tanks; a 3-tank system adds acid for multi-stage cleaning; and a 4-tank system enables acid reuse for aggressive or regulated chemical cleaning processes. More tanks can be added to this system if required.
More about this on our CIP Blog
All wetted components are made from food-grade 316 stainless steel. The entire system is washdown-rated and built for hygienic, industrial environments.
More about this on our CIP Blog
The system uses real-time monitoring tools, including flow rate sensors, temperature sensors, conductivity sensors, chemical concentration sensors, and tank level monitoring to ensure consistent and accurate cleaning cycles.
More about this on our CIP Blog
Yes, the Multi-Tank CIP System supports multi-stream CIP by using multi-pump configurations. This allows for the cleaning of two or more independent process lines simultaneously.
More about this on our CIP Blog
Yes! The PLC controls support remote diagnostics and control updates via a secure, end-to-end encrypted Ethernet connection.
More about this on our CIP Blog
The system supports flow rates up to 24 m³/hr and operates at cleaning temperatures up to 90°C for alkali-based cleaning. Turbulent flow is achieved at 1.5 m/s or higher.
More about this on our CIP Blog
Yes! The system is fully bespoke with no limitations on tank size, pipe diameter, or layout.
More about this on our CIP Blog
Safety considerations include CIP break tanks and backflow protection to prevent cross-contamination between cleaning and product lines. Slight output excess ensures constant motion of cleaning fluid, preventing stagnation.
More about this on our CIP Blog
The frame includes adjustable feet for levelling, making it suitable for integration into sloped floors or uneven surfaces.
More about this on our CIP Blog
Ready to streamline your cleaning? Speak to our team to explore a system built around your needs.
