Auger Feed Screw Hopper Pump

DHP, JHP Series

Solids

Non-Flowing Media

Auger Feed Screw Hopper Pump

Our ATEX-rated Auger Feed Screw Hopper Pump is designed to handle highly viscous, non-flowing materials with high solids content. Featuring a rectangular hopper and extended auger feed screw, it ensures reliable, blockage-free operation.

Available in two drive configurations, with customisable lengths and integrated joint protection, it delivers efficient performance across a wide range of industrial applications.

Typical applications for our Auger Feed Screw Hopper Pump:

  • Chemicals
  • Papermaking Products
  • Agriculture
  • Petrochemical By-Products
  • Maritime
  • Sewage Sludge
  • Water Treatment
  • Industrial Sludge
  • Detergents
Download Brochure

Specifications

Downloads

Features

Variations

Add Ons

Articles

Specifications

Specifications Description
Max Capacity (m³/hr) 45
Max Pressure (m) 240
Mat Temp (°C) 150
See below to download our full specification

Downloads

Auger Feed Screw Hopper Pump

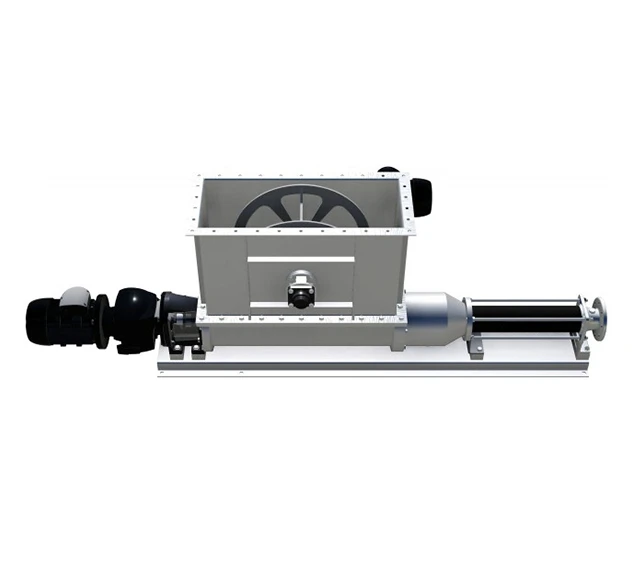

Industrial Auger Feed Hopper Pump

Key Features

The features & benefits of Auger Feed Screw Hopper Pumps include:

  • Compliance: CE-compliant and ATEX-rated.
  • Self-Priming: Efficient self-priming capability up to 7m.
  • Patented Pin Joint: Enhanced durability with reduced maintenance costs.
  • Customisable Length: Rectangular hopper with adjustable auger feed screw.
  • Solids Handling: Capable of pumping up to 35% dry substance with high viscosity.
  • Drive Options: Direct-drive flange coupling or shaft coupling with bearing housing.
  • Low Pulsation Flow: Minimised pulsating flows.
  • Advanced Shaft Sealing: Multiple sealing options.
  • Maintenance Efficiency: Worn component replacement without changing shafts and rotors.

Variations

DHS/JHS

Designed for cost-effectiveness and compactness, the DHS features a direct-drive flange coupling, while the JHS includes a shaft coupling for enhanced durability and performance.

DHB/JHB

Engineered for high-resistance applications, the DHB uses a direct flange coupling, whereas the JHB integrates a coupling joint and modular bearing housing for superior load absorption.

Add Ons

Add-ons include:

  • Base Plates: Standard base, anti-vibration housing, risers, skid with lifting devices, industrial trolley, hygienic trolley
  • Connections: Various flange and threaded connection options for different pressure stages
  • Sealing Systems: Gland seals, single and double mechanical seals, cartridge seals, API PLAN configurations
  • Optional Enhancements: Joint protectors, temperature probes, flow/pressure switches, overpressure valves, control panels, inverter drives, heating jackets, hygienic covers, CIP connections, and more
