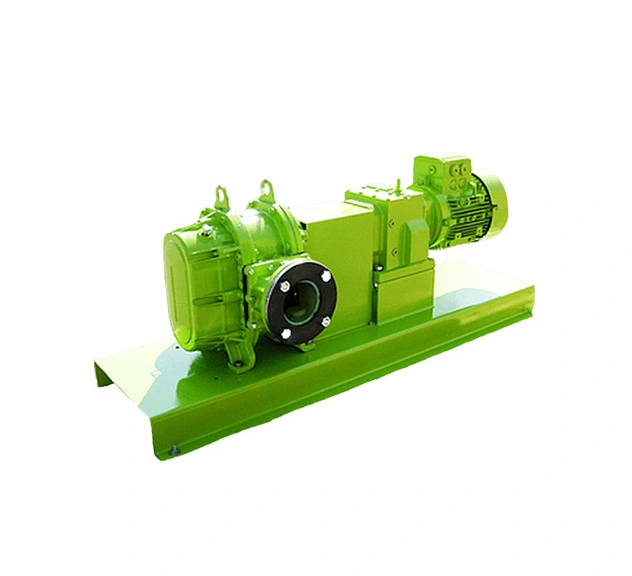

Our Industrial Rubber Rotary Lobe Pump is designed to handle viscous, fibrous, abrasive, and solids-laden products with ease. Its self-priming, reversible design and durable rubber lobes make it an effective alternative to Peristaltic and Progressive Cavity Pumps.
Available in nine sizes, the pump’s in-line configuration enables easy integration into existing pipework while delivering exceptional versatility across a wide range of applications, which include:
| Specifications | Description |
|---|---|
| Max Capacity (m³/hr) | 300m³/hr |
| Max Pressure (m) | 50m |
| Max Temperature (°C) | 40°C |
Two lobes rotate within the pump housing without contact via timing gears in the gearbox. As they turn, fluid is drawn into expanding cavities, trapped between the lobes and casing, and conveyed to the discharge port, allowing solids to pass through with the fluid.
These pumps deliver a consistent flow rate regardless of system pressure, ideal for applications with varying discharge conditions or fluid properties. Constructed from wear-resistant components, they feature interchangeable elastomer-coated lobes, a front pull-out design for easy maintenance, and a range of drive options.
Key Features of the Industrial Rubber Rotary Lobe Pump include:
