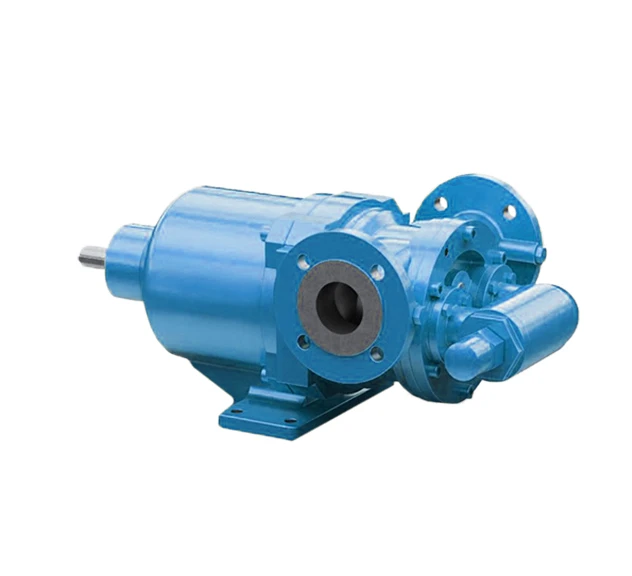

Tapflo’s Mag Drive (Magnetically Driven) Internal Eccentric Gear Pump is a reliable and efficient solution based on the simple “gear within gear” principle. Capable of pumping liquids that are too viscous for a standard Centrifugal Pump, these pumps deliver efficient suction lift and bi-directional operation, ensuring optimal efficiency and versatility.
This pump uses magnetic coupling and sealed pump housing, eliminating the need for mechanical seals, making it ideal for corrosive or hazardous environments.
Typical applications for our Magnetically Driven Internal Eccentric Gear Pump:
| Specifications | Description |
|---|---|
| Max Capacity (m³/hr) | 55m³/hr |
| Max Pressure (m) | 120m |
| Viscosity (cPs) | 5,500 cPs |
| Max Speed (rpm) | 1400rpm |
| Max Temp (°C) | 250°C |

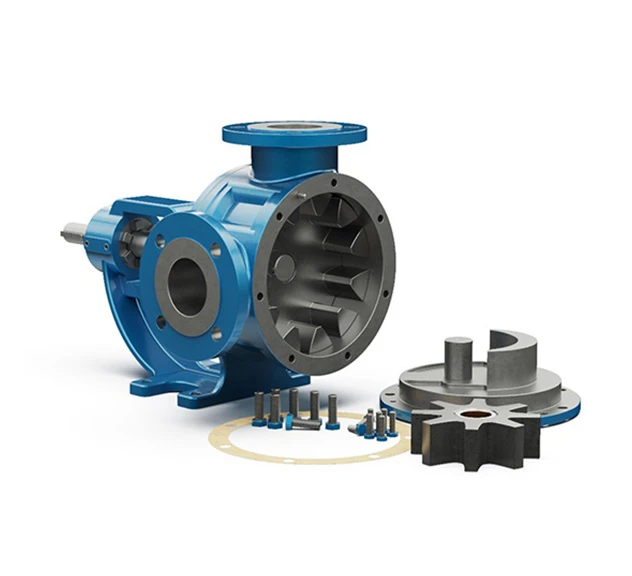

Fluid enters the pump and fills the cavities between the idler gear teeth and the rotary gear teeth. Fluid is transported through the pump in the rotational direction of the gear As the fluid is transported through, the fixed crescent in the pump splits the fluid and acts as a seal, preventing backflow of the fluid As the pump is filled, it forms pockets of fluid to guarantee a set volume per rotation Once the pump is flooded, the gears mesh together to form a seal, which enables all of the fluid to exit the discharge of the pump under pressure.
The Mag Drive Internal Eccentric Gear Pump has many benefits which include:
If you’re looking for a modular model of the Mag Drive Gear Pump that is suitable for low-volume, high-pressure applications, take a look at our Mag Drive Modular Gear Pump.
