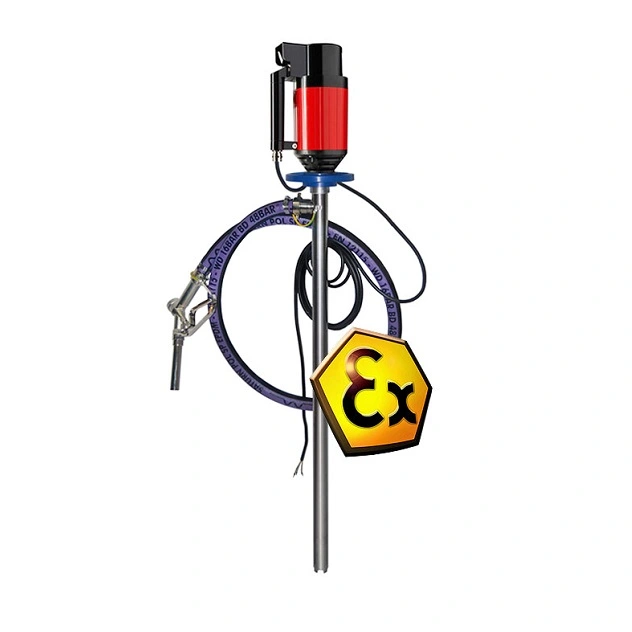

JP-440 SS 1000mm ATEX Drum Pump Set

Exceptional Chemical Resistance

High-Performance Fluid Transfer

JP440 SS 1000mm ATEX Drum Pump Set

Our JP-440 SS 1000mm ATEX Drum Pump Set is designed for the safe and efficient transfer of flammable liquids such as gasoline and solvents in hazardous environments.

Featuring an explosion-proof electric motor (ATEX-certified and IECEx-approved), this pump set provides maximum safety and reliability.

The Stainless Steel pump tube offers exceptional chemical resistance and durability, ensuring safe operation in ATEX zones. It is ideal for industries requiring high-performance fluid transfer.

Typical applications for this Drum pump set include:

  • Fuel and Petroleum Transfer
  • Solvent and Chemical Processing
  • Paints and Coatings Industry: Lacquers, varnishes, perchloroethylene
  • Pharmaceutical and Laboratory Use: Safe dispensing of hazardous liquids
  • Industrial Cleaning and Degreasing
  • Corrosive and Acidic Media Handling
  • Thin Fluid Food Products: Fruit juices, milk, edible oils

Specifications

Downloads

Information

Features

Specifications

Specifications Description
Flow Rate (l/min) 82 L/min (Rotor) / 61 L/min (Impeller)
Head (m) 9m (Rotor) / 20m (Impeller)
Viscosity cPs 400 cPs
See below to download our full specification

Downloads

Download Brochure

Information

About the JP440

A preassembled, plug-and-play solution for 200L drums and 1000L IBCs. It is safe for use in hazardous environments. Its lightweight, robust design supports mobile or stationary use, while the Stainless Steel 316Ti pump tube offers excellent corrosion resistance. Designed for intermittent operation, it delivers high safety, low noise, and efficient cooling.

Included in the Set

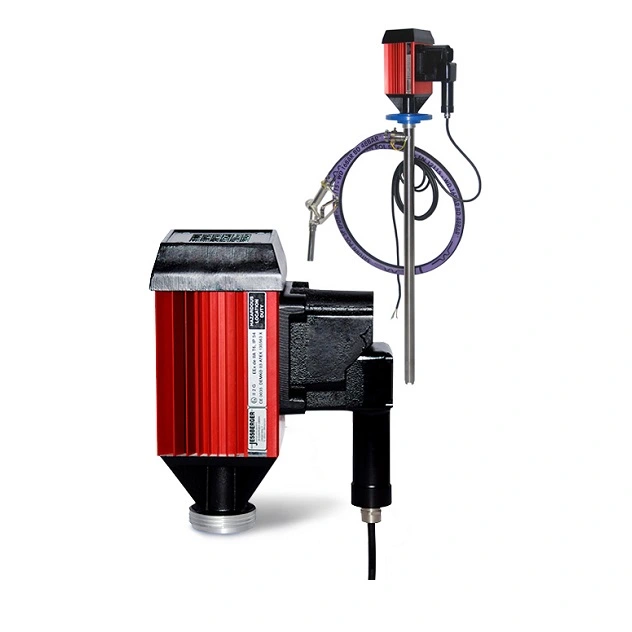

JP-440 Explosion-Proof Electric Motor (400W, 230V, 50/60 Hz, IP55) 1000mm Stainless Steel 316Ti Pump Tube (Sealless and ATEX-Certified) 2m Multi-Purpose Conductive Hose (1″ DN 25) 2 Stainless Steel Hose Connectors (IG 1¼” or IG 1″) Brass-Plated Nozzle for Controlled Dispensing Equipotential Bonding Cable Kit for Safe Grounding

Features

Features of the JP-440 SS 1000mm ATEX Drum Pump set include:

  • ATEX-Certified Explosion-Proof Motor
  • High-Performance Flow Rate: Up to 82 l/min with a maximum head of 20m
  • Easy Disassembly for Quick Cleaning: Ensures minimal downtime and maintenance
  • Integrated Low Voltage Release Switch: Prevents uncontrolled motor restarts
  • Externally Ventilated Motor
  • Versatile Application: Suitable for drums, IBCs, and various hazardous liquids
  • Complete Pump Set for Immediate Use: Includes conductive hose, nozzle, and bonding cable
JP-440 SS 1000mm ATEX Drum Pump Set
