We worked closely with a returning client to supply them with an ATEX-certified Diaphragm Pump for their application, which included solid-laden fluids. We were able to supply a high-quality Diaphragm pump, strengthening our long-term relationship with the client.
Application
One of Tapflo UK’s biggest customers returned to us for another quality pump solution. They were looking to efficiently pump heat transfer fluids containing solids.
Additional requirements of their application included:
- Able to handle solids of up to 3mm
- A suction lift of up to 1m
- ATEX Zone 2 rating (the application may have hazardous materials or there may be a presence of hazardous environments/areas)
- Able to transfer 5m3 at 2 Bar
- Fluid temperature needs to be maintained at 85°C
Pump Solution
Tapflo knew exactly which pump would be ideal for the application, and suggested a 1” Aluminium Diaphragm Pump with PTFE diaphragms and valve balls for longevity.

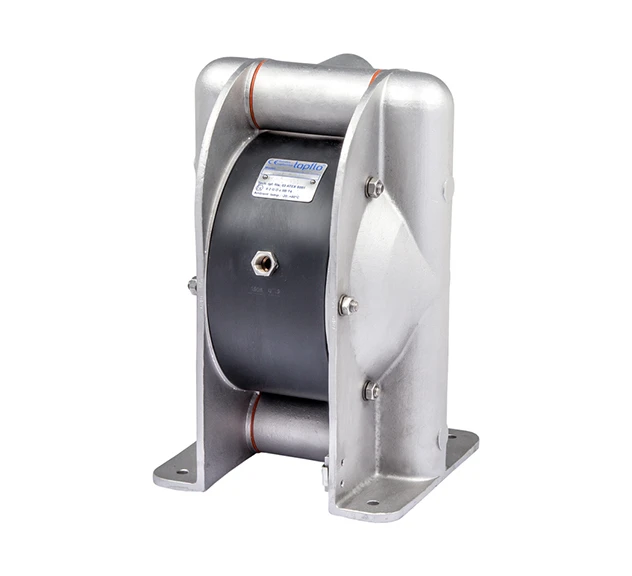

ATEX metal Diaphragm Pump specs (smallest model T25):
- Max Capacity: 26 (l/min)
- Volume per Stroke: 45 (ml)
- Max Discharge Pressure: 8 (bar)
- Max Suction Lift Dry: 1.5 (m)
- Max Temp with PTFE: 110°C
Our ATEX Diaphragm Pump was supplied with Filter Regulator Kits, Air and Liquid Kits for future maintenance. If properly maintained, Tapflo Diaphragm Pumps will have a long life due to the design and manufacturing quality that Tapflo provide.
Check out another case study about the longevity of Tapflo Diaphragm Pumps in the video below.
Benefits of ATEX Diaphragm Pump
The ATEX Diaphragm Pump comes with many benefits, some of which include:
- ATEX-rated for safe use in hazardous zones or when handling hazardous materials
- Self-priming: Meaning it doesn’t run the risk of running dry
- Can handle solids and highly viscous material
- Conductive material ensures no electrostatic loads will accumulate in the pumps
- Can offer pneumatic and electric valve draining
- Suitable for a variety of applications including: Chemical, Paint, Oil and Gas and industries such as Mining, Wastewater Treatment, Food & Beverage and even Pharmaceutical.
Tapflo's solutions
Tapflo’s Diaphragm Pump solution successfully improved their application and they could continue their operation with maximum efficiency and reliability.
